Automatic Gift Boxes Machine HM-ZD350K
Automatic Gift Boxes Machine HM-ZD350K launched in 2018, special for the customer whom’s order quantity is small but have varius kinds of box size need to change in per day. This model with memory system and only need around 10minutes when change repeat order, very high efficiency and save lots of time to change size.

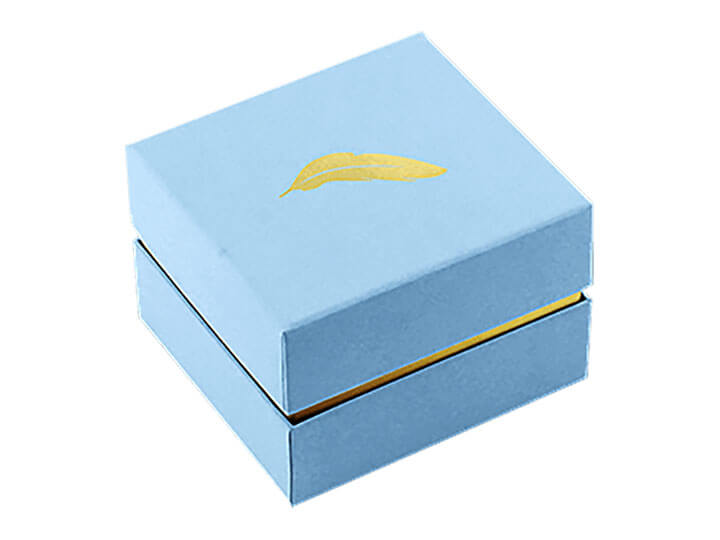

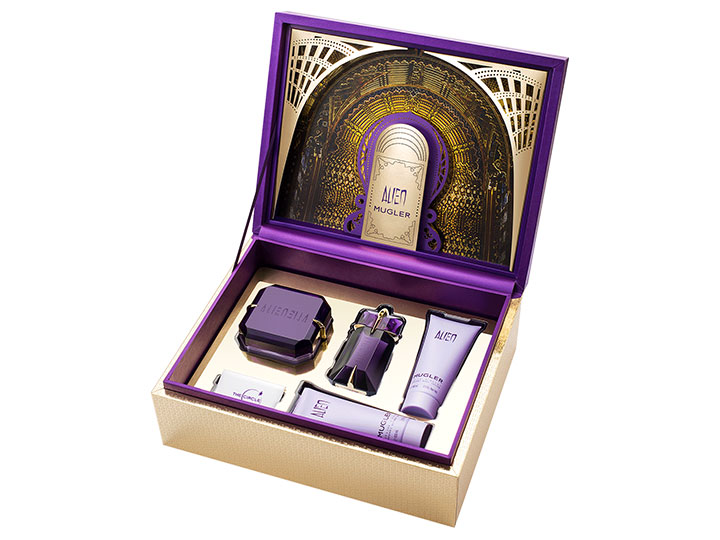

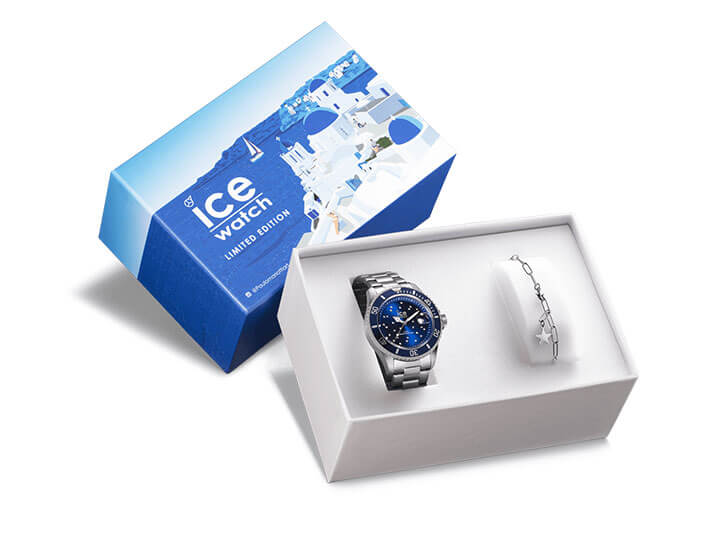

Suitable for all luxury setup box, such as watch box, phone box, gift box, jewellery box,cosmetics box and etc
Description:
Automatic Gift Boxes Machine HM-ZD350K is for creating premium boxes of standard size, that is digital setting with memory system. it’s appropriate for production of assorted box sorts, like high-end jewellery boxes, portable boxes, jewellery boxes, gift boxes , cosmetics boxes, watch boxes etc, the largest box will reach 350mm long and 250 millimetre wide . The vary of boxes is larger and may meet the wants of the trendy packaging market. the looks of the entire machine has been utterly redesigned to be safer and a lot of stunning. This machine adopts PLC and man-machine system and camera tracing system to feed paper, gluing, feed greyboard , glued four corners, spot greyboard, lift box, fold corner edges and wrap box mechanically.The feeder, the gluer and also the conveyor area unit driven by servos, the machine has unendingly variable transmission and enjoys high accuracy, straightforward adjusting, and potency. The recognizing unit adopts camera tracing system and mechanism arm to choose and spot the greyboard, enhancing the spotter accuracy to ±0.05mm. The forming unit adopts Japan THK linear slider and virtual electronic cam driving system, guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and corner edges.
Features:
1. Suit to all kinds of rigid boxes in mass production;
2. Parameters adopts computer digital setting;
3. Auto error stop and display;
4. Automatic feed paper and greyboard;
5. 24-hours control for glue pre-heating;
6. Wrapper can input 300 product formulas;
7. Corner pasting part with independent man-machine control and
heating system;
8. Adopt YASKAWA servo and PLC;
9. Spotter by camera tracing system and SCARA (Selective
Compliance Assembly Robot Arm) (spotting accuracy ±0.05mm);
10. Wrapper can automatic lift and wrap box;
11. Automatic control system for glue viscosity (optional).
12. Digital setting with memory system (optional
Technical Parameters:
Automatic Gift Boxes Machine HM-ZD350K Workflow
