Automatic Cellphone Box Making Machine HM-ZD6418D
Automatic Cellphone Box Making Machine with Double Wrapper HM-ZD6418D suitable for midium and big-size premium boxes’ mass production, extensively suitable for all kinds luxury rigid box’s production, such as Cellphone boxes, Chocolate Box, Wine Box, Perfume Box and etc. It developed in 2018
Description：
HM-ZD6418D Automatic Rigid Box Machine adopts PLC and man-machine control, camera tracing system, and can automatically feed cover paper, feed greyboard, paste four corners, spot greyboard, lift box, wrap box, fold corner edges and form box.
The feeder, the gluer and the converyor are driven by well known servos which have continuously variable transmission, and enjoys high accuracy, easy adjusting, and high efficiency. The corner unit can be attached to the tape of different lengths according to the need; The spotting unit adopts camera tracing system and robot arm to pick and spot the greyboard ,enhancing the spotter accuracy to ± 0.05mm，and its spotting and adjusting is more faster：The forming unit employs Japan THK linear slider and virtual electronic cam driving system, guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and corner edges.
Features:
1. Suit to all kinds of rigid boxes in mass production;
2. Parameter adopts computer digital setting;
3. Auto error stop and display;
4. Automatically feed paper and greyboard;
5. 24-hours control for glue pre–heating;
6. Wrapper can input 300 product formulas;
7. Corner pasting part with independent man-machine control and heating
system.;
8. Adopts YASKAWA servo control system;
9. Spotter by camera tracing system and SCARA (Selective Compliance
Assembly Robot Arm) (spotting inaccuracy ±0.05mm);
10. Wrapper can automatic lift and wrap box.
11. Automatic control system for glue viscosity (optional);

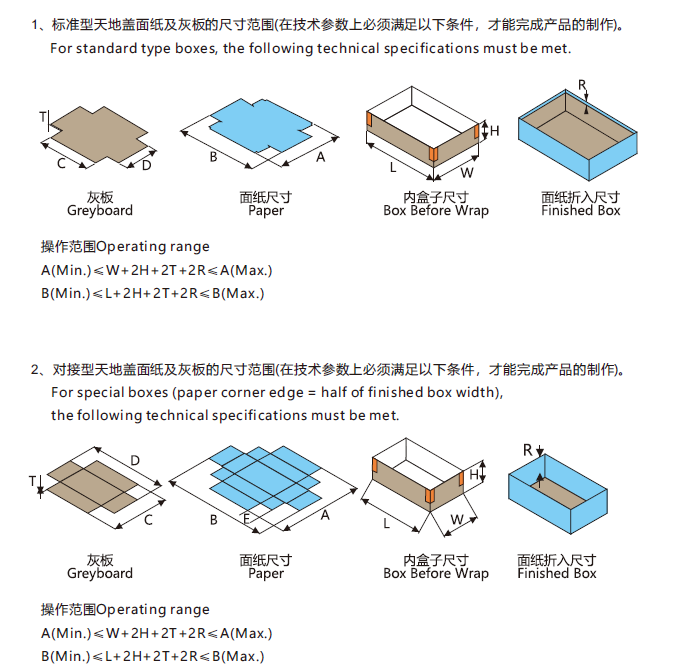

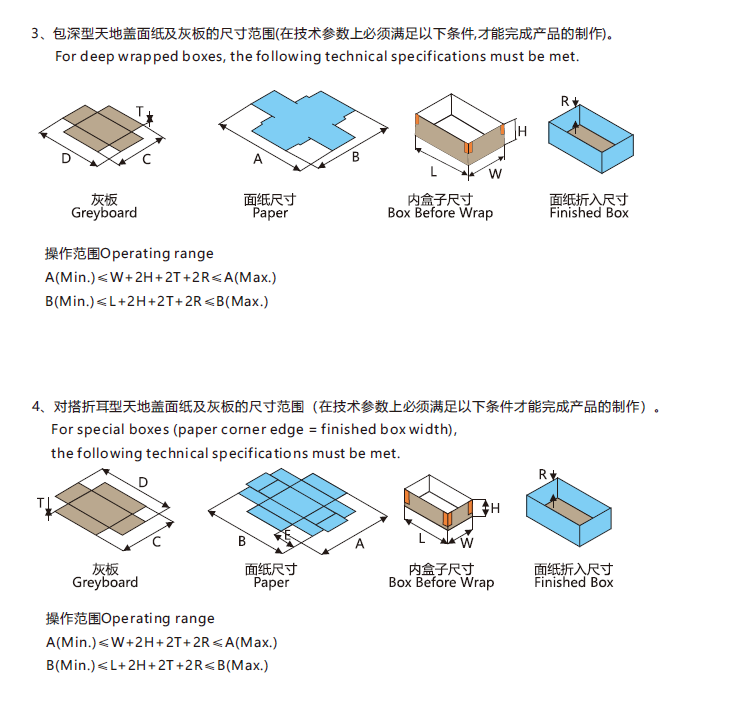

Technical Parameters:
